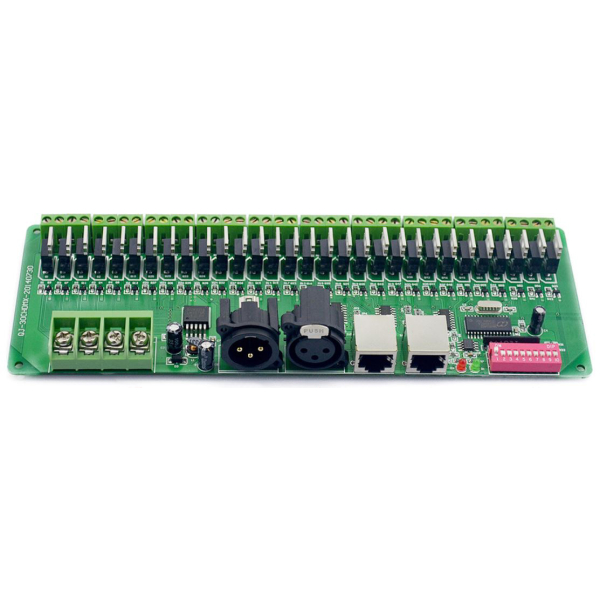

30 channel DMX 512 Controller (circuit board)

SKU: LCO-1054-01
  • GTIN: 4260587330259
  • HAN: LCO-1054-01

30-channel DMX decoder for controlling our RGB-LEDs, RGB LED strips or modules via DMX-512. The decoder can process the standardized DMX-512 protocol. Three channels (red, green, blue). The power supply and the RGB LEDs are connected via screw terminals. The DMX control cables can be connected via the XLR-3 or RJ45 socket.

The DMX-512 controller has internal test programs that are selected as well as the DMX address via DIP switches

The DMX signal can be looped through to other devices via the DMX Out.

Item currently out of stock
  • This article is located in the inlet
Notify me when this item is available
  • This article is located in the inlet

Description

Technical details:

  •   Operating voltage: 9-24V DC
  •   Output current: max. 2A per channel
  •   Length: 225.00mm
  •   Width: 80.00mm
  •   Height: 32.00mm
  •   Working temperature: -20 to + 60 ° C
  •   Input signal: DMX512
  •   Channels: R/G/B/COM+
  •   Brightness levels: 256 levels
  •   DMX512 connection: DMX512 input and output for DMX signals
  •   For installation in a housing (not to be used without a housing)

application area

  •   Advertising displays
  •   Control of Christmas lights
  •   AmbiLight
  •   Club lights
  •   Stage light

included in delivery

  •   1 Controller

user manual

  user manual



Characteristics

Item information Value
WEEE-Reg.-Nr.: DE 32487762
Operating Voltage: 12 Volt DC9 Volt24 Volt
Shipping weight: 0,30 kg
