Description

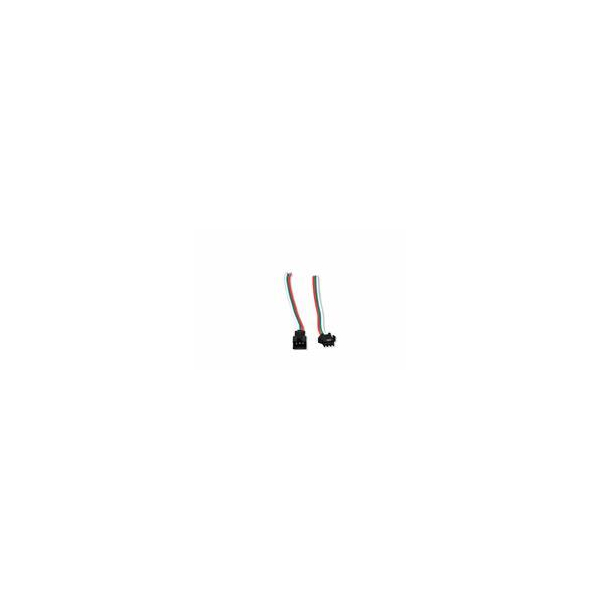

3-pin connection cable set with plug and socket
Two short 3-core cables: one with a 3-pin plug, one with a matching socket, each with open cable ends. They provide a pluggable connection for lines up to 24 V, for example to power LED strings.
Is this right for my project?
What it is made for
- Pluggable connection of 3-core lines up to 24 V
- Making lines detachable, e.g. for set-up and dismantling
Not suitable for
- Mains voltage (230 V)
- xConnect® connectors – there are dedicated plugs for these
3-pinNumber of poles
approx. 30 cmTotal length
up to 24 VVoltage
1 setScope of delivery
Installation
How to connect the set
- Connect. Solder the open cable ends to the lines or join them with suitable terminals and insulate.
- Plug in. Push plug and socket together until the latch clicks.
Note: Only for extra-low voltage up to 24 V. Check the wire assignment before connecting.
Scope of delivery
- 1 set: 1 cable with plug, 1 cable with socket
FAQ
Is this an xConnect® plug?
No. There are separate items for xConnect® connectors in this category.
Characteristics
| Item information | Value |
|---|---|
| Form factor: | Connection cable |
| Number of poles: | 3 |
| Shipping weight: | 0,01 kg |
| Content: | 30,00 cm |
