Description
This addressable WS2811 pixel string is designed for 12 V setups and is commonly used for
DIY holiday lighting, house outlines and garden installs.
Standard spacing is 4 inch (≈ 10 cm). Choose pixel count, connector and cable color via the options.
WS2811 stands for digitally addressable RGB pixels. Each pixel can be controlled individually,
enabling chases, patterns and clean outlines – from small props to larger displays.
A solid choice for rooflines, windows, arches, props and MegaTrees.
Consistent spacing helps your layout look tidy and intentional.
Many builders like 12 V for longer runs because current is typically lower than with 5 V at similar power.
Still, for larger displays a planned power injection strategy is the reliable approach.
Designed for WS2811 controllers in 12 V setups.
Pick your pixel count (e.g. 50/100), connector (JST or xConnect®) and cable color
so it matches your controller and extension system.
First select pixel count, then the connector and cable color.
Standard spacing: 4 inch (≈ 10 cm).
The pixels are IP68 (potted).
For a weatherproof system, the connector matters too:
xConnect® is outdoor-suited; other connectors may need additional protection/sealing.
Note: Cable gauge details (e.g. 18 AWG / 0.75 mm²) are listed in the “Specifications” tab.

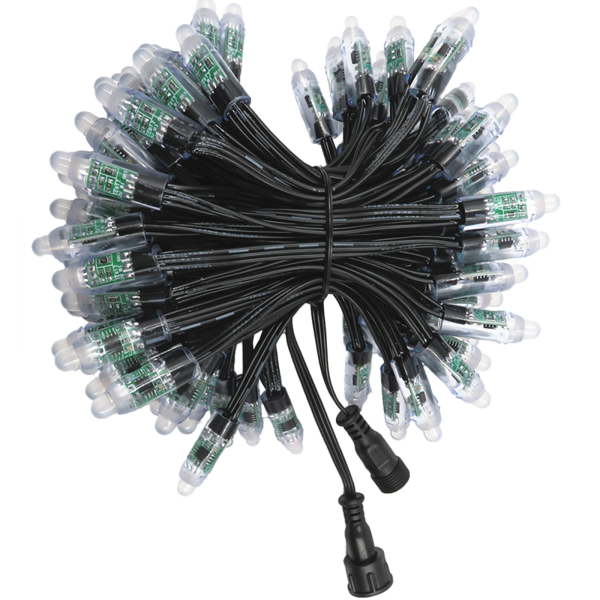

WS2811 RGB Pixel String (12 V) – 12 mm bullet pixels, 4 inch spacing, outdoor
What is a WS2811 pixel string?
Typical use cases
12 V in practice
Controller, connector & options
Outdoor – correctly stated
FAQ
What is the standard version?
Can I use it outdoors?
Do I still need power injection at 12 V?
Characteristics
| Item information | Value |
|---|---|
| Controller IC: | WS2811 |
| Pixel Diameter: | 12 mm |
| WEEE-Reg.-Nr.: | DE 32487762 |
| Cable color: | black |
| Voltage management: | resistor |
| Pixel spacing: | 4 inch (≈ 10 cm) |
| Color depth: | 24-bit (≈16M colors) |
| Cuttable: | Yes, after each pixel |
| Operating Voltage: | 12 Volt DC |
| Ambient Operating Temperature:: | -15 to + 60°C |
| Connector System: | xConnect® |
| Power (string): | ~72 W (100 px) |
| Design current (string): | approx. 6.0 A (100 px @ full white) |
| Length (string): | approx. 10 m |
| Ingress Protection: | IP68 |
| Wire gauge: | 18 AWG – 0,75 mm² |
| Shipping weight: | 0,80 kg |
| Content: | 100,00 Pixel |
