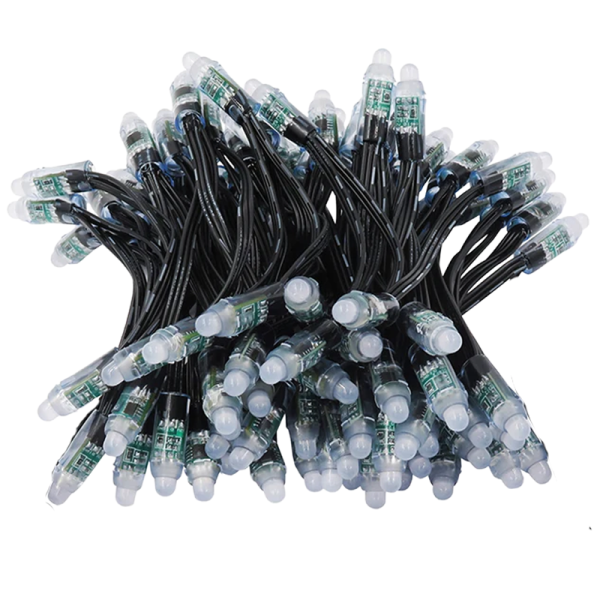

WS2811 Pixel String (5V) - 12mm

SKU: 10236

WS2811 RGB Pixels – addressable
A classic pixel string for effects, chases & clean outlines

For MegaTrees & long pixel runs
4" (~10cm) standard spacing for many mounts & coro props

5 V system · Outdoor
Rugged 12 mm pixels, IP68 (pixels) – variants in the selection menu

10,99 €

incl. 19% VAT , plus

Choose tax zone / country of delivery

Available immediately

string

This item has variations. Please select the requested variation.

Available immediately

Description

WS2811 RGB Pixel String (5V) - 12 mm bullet pixels, 4" spacing, outdoor

This addressable WS2811 pixel string is designed for 5 V setups and is commonly used for DIY holiday lighting, house & garden installs and classic pixel projects. The standard spacing is 4" (≈ 10 cm) – a great fit for many mounts and coro props. Important for 5 V: depending on run length, brightness and wiring, planned power injection can help keep output stable.

What does WS2811 mean for pixel strings?

WS2811 is a widely used standard for digitally addressable RGB pixels. In practice, each pixel can be controlled individually – perfect for chases, color changes and clean outlines. This is the classic 5V standard pixel string with 12 mm bullet nodes and 4" spacing.

Typical use cases

Common applications include rooflines, window outlines, arches, props and MegaTrees. For visible lines, a calm and consistent look matters most.

MegaTree long runs, clean appearance

House outline roofline, windows, frames

Garden & props arches, figures, mini trees

Understanding voltage drop (important for 5V)

Over longer runs, voltage at the far end can drop. With 5 V this can show up sooner, depending on length, brightness and wiring. For larger builds, planned power injection (e.g., at multiple points) helps keep colors and brightness stable.

Controller, connectors & variants

Built for WS2811 controllers in 5 V setups. Choose via variants so the string matches your controller/extension ecosystem: pixel count (50/100), connector (JST or xConnect®) and wire color (Blue/White/Red or Black).

Variants – how to choose

First select the pixel count (50 or 100), then choose the matching connector and your preferred wire color. Standard spacing is 4" (≈ 10 cm).

Pixel count: via variant
Connector: via variant (JST or xConnect®)
Wire color: via variant
Custom lengths: on request

Outdoor – properly classified

The pixels are outdoor capable (IP68). Overall outdoor suitability also depends on the connector: xConnect® is designed for outdoor use; JST may require sealing/protection depending on the build.

Note: details such as wire gauge (e.g., 18 AWG / 0.75 mm²) are listed under “Features”.

FAQ

What is the standard version?

Standard spacing is 4" (≈ 10 cm). Pixel count, connector and wire color are selected via variants.

When does 5V benefit from power injection?

It depends on run length, brightness and wiring. If voltage drop becomes visible at the end, planned power injection at one or more points helps.

Are pixels and connectors outdoor capable?

Pixels are IP68. For a long-term outdoor setup the connector matters: xConnect® is designed for outdoor use; JST needs protection/sealing depending on installation.

Characteristics

Item information	Value
Operating Voltage:	5 Volt DC
Controller IC:	WS2811
Pixel Diameter:	12 mm
WEEE-Reg.-Nr.:	DE 32487762
Cable color:	black Blue/White/Red
Connector System:	JST-SM xConnect®
Pixel spacing:	4 inch (≈ 10 cm)
Color depth:	24-bit (≈16M colors)
Cuttable:	Yes, after each pixel
Design current (string):	approx. 3.0 A (50 px @ full white)
Length (string):	approx. 5 m
Ambient Operating Temperature::	-15 to + 60°C
Ingress Protection:	IP68
Wire gauge:	18 AWG – 0,75 mm²
Power (string):	~15 W (50 px)
